• Support H.265/H.264 video formats
• Support audio over coaxial cable (only for TVI cameras)
• Control the dual-light of UNV analog cameras under TVI
• Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
• 8-channel BNC input
• Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K (3840 x 2160)
• HDMI and VGA simultaneous output
• Long transmission distance over coaxial cable
• Support mainstream cameras of ONVIF and RTSP protocols
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
Pick up from the Woodmart Store
To pick up today
Free
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
Delivery -
Same day dispatch on orders placed before 12 Noon.
Backed by us -
Up to 3 years warranty, 3 years advance replacement.
Free Returns -
30 days money back guarantee given to our customers.
Payment Methods:

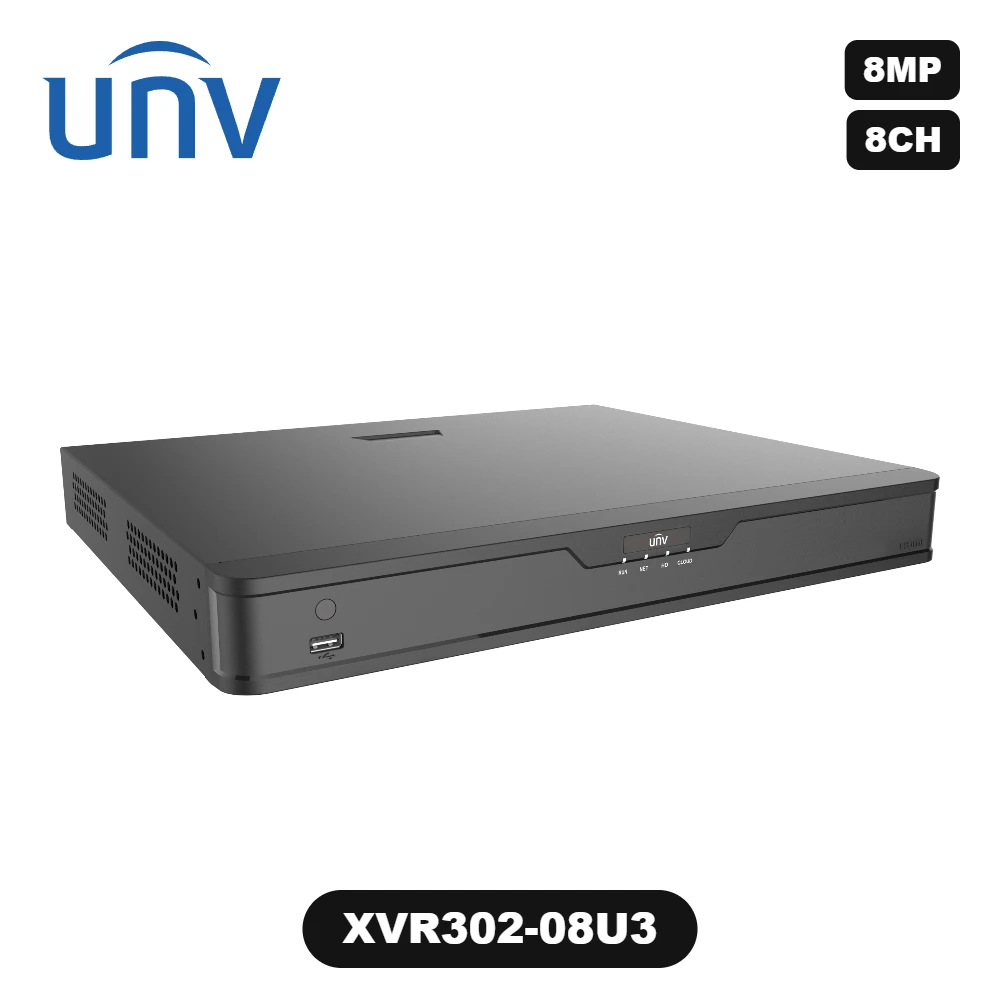

| XVR302-08U3 | ||||||||
| Video/Audio Input | ||||||||
| IP Video Input | 8-ch | |||||||
| Analog Video Input | 8-ch, BNC | |||||||
| Max IP Video Input | 16-ch | |||||||
| Supported Analog Camera Types | Support AHD input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support TVI input: 8MP@15fps 3K@20fps 5MP@20ps 4MP@30fps 1080P@30fps 720P@30fps Support CVI input: 8MP@15fps 5MP@25ps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input |
|||||||
| BNC Audio Input | 8-ch, channel audio | |||||||
| RCA Audio Input | 4-ch | |||||||
| Video/Audio Output | ||||||||
| HDMI Output | HDMI: 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz | |||||||
| VGA Output | VGA: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz | |||||||
| BNC Video Output | 1-ch | |||||||
| RCA Audio Output | 1-ch | |||||||
| Live View Display | HDMI/VGA: 1/4/6/8/9/16 | |||||||
| Encoding/Decoding | ||||||||
| Recording Resolution | 8MP/5MP/4MP/1080P/720P/D1 | |||||||
| Recording Frame Rate | Main stream: 8MP@8fps Sub stream: D1@8fps Main stream: 3K@12fps Sub stream: D1@12fps Main stream: 5MP@12fps Sub stream: D1@12fps Main stream: 4MP@15fps Sub stream: D1@15fps Main stream: 1080P@25fps Sub stream: D1@25fps Main stream: 720P@30fps Sub stream: D1@30fps |
|||||||
| Audio Sample Rate | 8 kHz, 16 bit per channel | |||||||
| Audio Bit Rate | 64 Kbps per channel | |||||||
| Decoding Capability | Analog: 8 x 8MP@8, 8 x 3K@12, 8 x 5MP@12, 8 x 4MP@15, 8 x 1080P@25, 8 x 720@30 IP: 2 x 8MP@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30 |
|||||||
| Coaxial Cable | ||||||||
| Audio over Coaxial Cable(Form) | 8-ch, One-way Audio(TVI) | |||||||
| Two-way Audio | ||||||||
| Two-way Audio | 1-ch, RCA (Using the audio input and output) | |||||||
| Analog Snapshot | ||||||||
| FTP/Schedule/Event Snapshot | Schedule/FTP/Event snapshot:8-ch snapshot, up to 704*576 resolution | |||||||
| Network | ||||||||
| Incoming Bandwidth | 80Mbps (Up to 96Mbps after all analog channel conversion) | |||||||
| Outgoing Bandwidth | 160Mbps | |||||||
| Remote Users | 128 | |||||||
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, NTP | |||||||
| Browser(Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ | |||||||
| Smart | ||||||||
| Analog Smart by XVR | SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD) | |||||||
| IP Smart by IPC | Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Defocus Detection, Scene Change Detection, Object Removed, Object Left Behind, Auto Tracking | |||||||
| VCA Search | Face Search, Behavior Search | |||||||
| Smart Functions by XVR | 8-ch (UMD), 4-ch (SIP) | |||||||
| Alarm | ||||||||
| General Alarm | Motion | |||||||
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |||||||
| GUI Language | ||||||||
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian | |||||||
| Hard Disk | ||||||||
| SATA | 2 SATA interfaces | |||||||
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) | |||||||
| External Interface | ||||||||
| Network Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface | |||||||
| USB | Rear panel: 1 × USB3.0, Front panel: 1 × USB2.0 | |||||||
| RS485 | 1 | |||||||
| RS232 | N/A | |||||||
| Alarm In | 8-ch | |||||||
| Alarm Out | 4-ch | |||||||
| Power Supply | DC 12 V/3 A | |||||||
| Working Environment | ||||||||
| Working Temperature | -10 ℃ to 55 ℃ (14 ℉ to 131 ℉ ) | |||||||
| Working Humidity | ≤ 90% RH (non-condensing) | |||||||
| Power Consumption (without HDD) | ≤ 12W | |||||||
| Dimensions | ||||||||
| Weight (without HDD) | ≤2.0 Kg ( 4.4lb ) | |||||||
| Dimensions | 380mm × 326mm × 53mm (15.0″ × 12.8″×2.1″) | |||||||
| Certification | ||||||||
| Certification | CE, FCC, UL, RoHS, WEEE | |||||||
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 | |||||||
