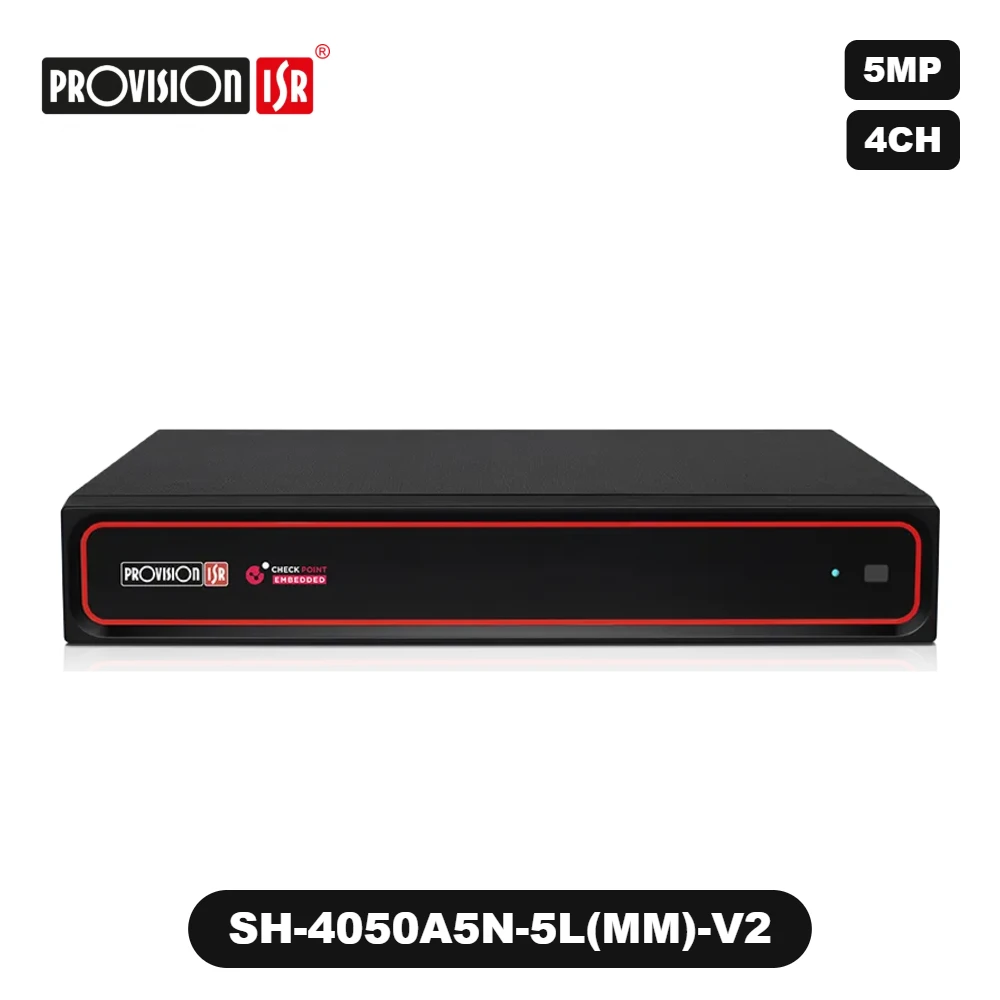

    4CH DVR SH-4050A5N-5L(MM)-V2

    SKU: SH-4050A5N-5L(MM)-V2
    4CH “4 in 1” + 2CH IP Dynamic Hybrid DVR
    Provision-ISR SH-4050A5N-5L(MM)-V2 is a high-quality dynamic hybrid digital video recorder obtainable in an elegant mini metal case. This technology allows users to add advanced IP cameras alongside analog ones and enjoy high-quality images and other advanced features available on IP cameras only. The recorder complies with NDAA demands and supports Provision-ISR’s DDA Video Analytics for analog & IP cameras.

    Apple Shopping Event

    Hurry and get discounts on all Apple devices up to 20%

    Sale_coupon_15

    Compare
    Add to wishlist
    15 People watching this product now!
    • Pick up from the Woodmart Store

    To pick up today

    Free

    • Courier delivery

    Our courier will deliver to the specified address

    2-3 Days

    Free

    • DHL Courier delivery

    DHL courier will deliver to the specified address

    2-3 Days

    Free

    • Delivery - Same day dispatch on orders placed before 12 Noon.
    • Backed by us - Up to 3 years warranty, 3 years advance replacement.
    • Free Returns - 30 days money back guarantee given to our customers.

    Payment Methods:

    Description

    Downloads

    Video Input:

    • 4CH Standard BNC + 2CH IP

    Video Output:

    • HDMI – FHD
    • VGA
    • CVBS

    Recording:

    • HD Analog: 3K/5MP Lite: up to 10FPS Per Channel /

      • 4MP Lite / 2MP: up to 12/15FPS Per Channel / 2MP Lite / 1MP: up to 25/30FPS Per Channel

    • CVBS: 960H: up to 25/30FPS Per Channel
    • IP: 5MP and lower: 25/30FPS Per Channel

    Playback:

    • Local: 4Ch Simultaneously
    • Remote: 4Ch Simultaneously

    Audio:

    • Input: 1CH + IPC Inputs
    • Output: 1CH + IPC Outputs

    Alarm:

    • Input: IP Cameras only
    • Output: IP Cameras only

    Storage:

    • 1 x SATA (Up to 6TB each)

    Network:

    • 1 x RJ-45: 10/100Mbps

    PTZ Support:

    • RS-485 / CoC / IP over Network

    Power Supply:

    • DC12V/2A

    Analytics:

    AI by IPC:

    • DDA1 Analytics Supported by the camera

    AI By DVR:

    • AI Object detection, Line Crossing/Sterile Area (Up to 1 channel, at the expense of 4 SMD channels)

    Remarks:

    • The following features are based on firmware v1.4.3_84729_RD260211 and are subject to firmware version changes.
