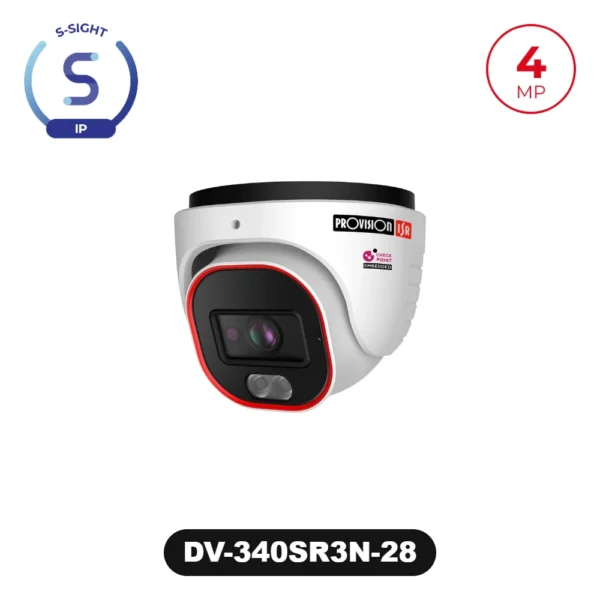

4MP Rainbow Camera DV-340SR3N-28
4MP Rainbow Camera DV-340SR3N-28
Back to products
VGA & RJ45 EXTENDER KIT OVER CAT-5E 15-UV101
VGA & RJ45 EXTENDER KIT OVER CAT-5E 15-UV101
Click to enlarge

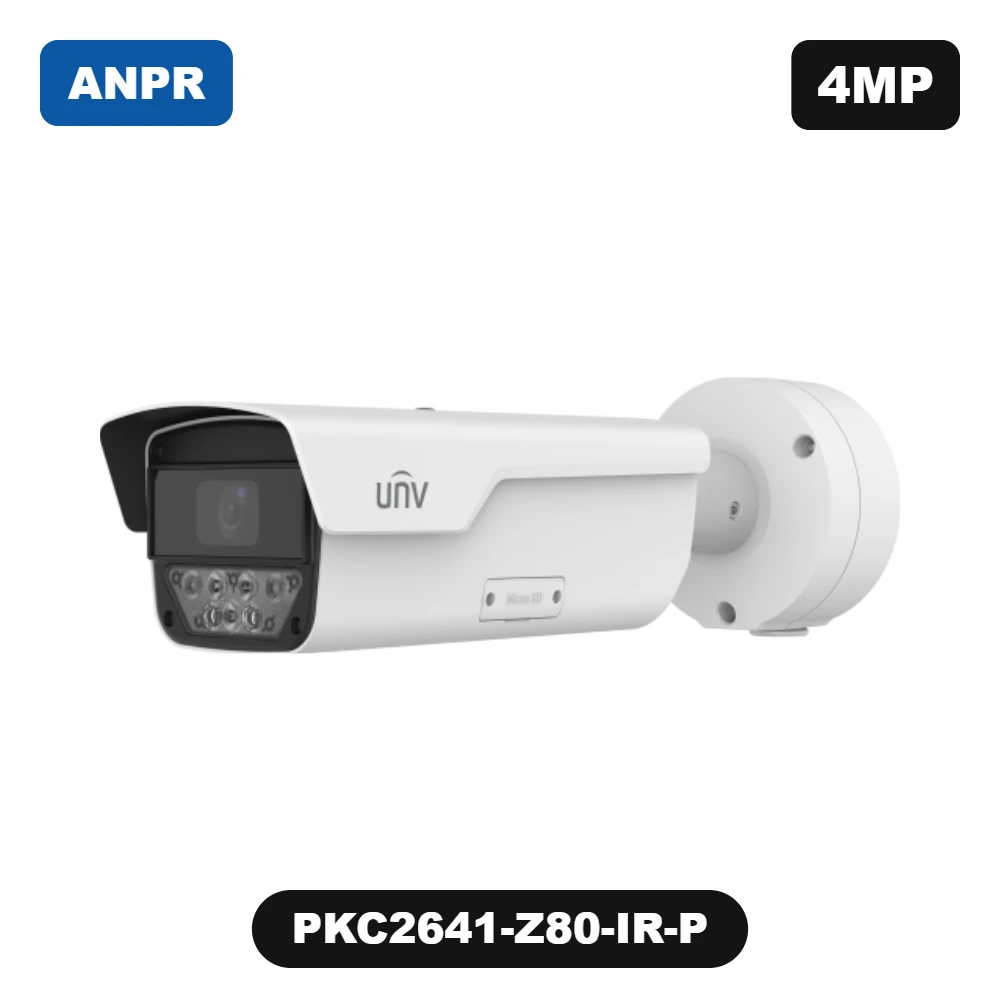

    4MP UNIVIEW ANPR BULLET CAMERA PKC2641-Z80-IR-P

    SKU: PKC2641-Z80-IR-P
    4MP Overseas Recognition Of Vehicle License Plate Bullet IP Camera
    • 1/1.8″ progressive scan CMOS.
    • Up to 2688 × 1520 resolution with real-time video.
    • Supports AI ISP for enhanced image quality.
    • Automatic gain control, white balance, and WDR for various light conditions.
    • Video frame rate upgraded to 60 fps.
    • Built-in vehicle and license plate recognition algorithm can recognize standard license plates of multiple countries.
    • Supports plate allowlist and blocklist configuration.
    • Supports Micro SD cards of up to 512GB.
    • IP67 and IK10 protection.

    Apple Shopping Event

    Hurry and get discounts on all Apple devices up to 20%

    Sale_coupon_15

    Compare
    Add to wishlist
    15 People watching this product now!
    • Pick up from the Woodmart Store

    To pick up today

    Free

    • Courier delivery

    Our courier will deliver to the specified address

    2-3 Days

    Free

    • DHL Courier delivery

    DHL courier will deliver to the specified address

    2-3 Days

    Free

    • Delivery - Same day dispatch on orders placed before 12 Noon.
    • Backed by us - Up to 3 years warranty, 3 years advance replacement.
    • Free Returns - 30 days money back guarantee given to our customers.

    Payment Methods:

    Description

    Datasheet



    PKC2641-Z80-P PKC2641-Z80-IR-P PKC2641-Z80-IR-P-NB
    Camera
    Sensor 1/1.8-inch 4MP CMOS
    Focal length 8 to 32mm
    Shutter Auto, range: 1/500 to 1/100000s
    Minimum illumination 0.002lux (F1.7)
    FOV Horizontal FOV: 42° to 15.5°,
    Vertical FOV: 23.1° to 8.8°,
    Diagonal FOV: 48.5° to 18.3°
    WDR 120 dB
    S/N > 50 dB
    Image collection format 2688*1520@60,2688*1520@50,2688*1520@30 (default),2688*1520@25
    Frame rate 60, 50, 30 (default), 25, 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1
    Video compression H.264 (default), H.265
    ROI Supports up to 8 regions
    HLC Support
    BLC Support
    Defog Digital defog
    Digital Noise Reduction 3D DNR
    Video OSD Supports 8 overlay areas and allows contents including date, time, date&time, zoom ratio, custom contents
    Image OSD Supports 8 overlay areas and allows contents including time, license plate number, device ID, camera ID, allowlist, image authentication ID, custom contents (3 items), location
    Display Parameters
    Resolution Main stream: 2688*1520, 1080P (default), 720P, D1; Sub stream: 720P (default), D1, 2CIF, CIF; Third stream: D1 (default), 2CIF, CIF
    Smart
    Application scenario ≤ 80km/h for regular roads;
    Camera with the focal length of 8 to 32mm can be used for regular roads
    Vehicle detection mode Supports video detection
    License plate number recognition Supports recognition of license plates with numbers and letters by default
    List configuration Supports allowlist and blocklist configuration, each list allows 20,000 items
    Supports import, export, add, and delete operations
    Barrier opening policy Open barrier only for the recognized vehicles
    Open barrier for all vehicles
    Open barrier only for vehicles on the allowlist
    Open barrier for vehicles not on the blocklist
    Configurable Boolean output ID
    Country and Region Supported United States, Canada, Saudi Arabia, United Arab Emirates, Qatar, Singapore, Malaysia, Indonesia, Vietnam, Thailand, India, Bangladesh, Cambodia, South Korea, Kyrgyzstan, Tajikistan, Kazakhstan, Uzbekistan, Turkmenistan, Egypt, Tunisia, Brazil, Argentina, Mexico, Finland, Estonia, Latvia, Lithuania, Poland, France, Spain, Portugal, Germany, United Kingdom, Ireland, Bulgaria, Romania, Hungary, Serbia, Bosnia and Herzegovina, Greece, Croatia, Italy, Netherlands, Sweden, Belgium, Austria, Norway, Denmark, Slovenia, Czechia, Slovakia, New Zealand, Australia, Philippines, Nepal, Israel, Albania, Moldova, Turkey, Switzerland, Georgia, Bahrain, Morocco
    Key Functional Parameters
    Detection Direction Bidirectional、Top to Bottom、Bottom to Top
    Intelligent
    Vehicle Type Recognition Car/Van/Large Bus/Medium Bus/Heavy Truck/Light Truck/SUV/MPV/Pickup/Motorcycle
    Vehicle Color Recognition Red, Yellow, green, blue, purple, pink, brown, white, Grey, black, silver, orange
    Vehicle Manufacturer Recognition 133 Manufacturers: Audi, ALFA ROMEO, AION, ANKAI, ACURA, Aston Martin, ARCFOX, BYD, BUICK, BENTLEY, BMW, BAIC MOTOR, BUGATTI, BORGWARD, Beiben Truck, Besturn, CHANGAN, Citroën, Cadillac, CHERY, CHRYSLER, Chevrolet, CHTC, DONGFENG, DACIA, Daihatsu, DATSUN, DODGE, DS, DAEWOO, Dongnan, EXEED, FAW, Ford, FORLAND, Ferrari, FIAT, Foton, GEELY, GAC, GREAT WALL, GMC, Geometry, HONDA, HYUNDAI, HIGER, Hino, Hong Qi, Haval, Haima, INFINITI, Isuzu, IVECO, IM, JAC, JEEP, JAGUAR, JOYLONG, JMC, JETTA, JETOUR, KIA, Karry, King Long, KMULLER, LYNK&CO, LINCOLN, LEXUS, LOTUS, LANDWIND, LANDROVER, LAMBORGHINI, LIFAN, LEVC, LUXGEN, LEOPARD, LADA, LUMMA, LI AUTO, LEAPMOTOR, Mercedes-Benz, MINI, MAZDA, McLaren, MASERATI, MAN, MG, MITSUBISHI, MAXUS, MORGAN, MUSTANG, MODERN AUTO, NISSAN, NIO, OPEL, ORA, OUSHANG, PEUGEOT, PORSCHE, Polestar, QOROS, Roewe, ROLLS ROYCE, RENAULT, SINOTRUK, SXACT, SKODA, SSANGYONG, SMART, SUZUKI, SUBARU, SAAB, SCANIA, SEAT, SWM, SANY, SILVER, SKYWORTH, TOYOTA, TESLA, TANK, Volkswagen, VOLVO, VOYAH, Wuling, WEY, XCMG, Xiaopeng Motors, XINYUAN, YUTONG, ZHONGTONG, ZOTYE, ZEEKER, ZHONGHUA, ZHINUO
    Storage
    Edge storage Supports ANR with a Micro SD card, up to 512GB
    Structure
    Illumination Built-in integrated illumination module, including 5 warm light LEDs, 50m illumination distance, automatic on/off control Built-in integrated illumination module, including 5 IR LEDs, 50m illumination distance, automatic on/off control Built-in integrated illumination module, including 5 IR LEDs, 50m illumination distance, automatic on/off control
    Bracket 3-axis mounting bracket
    Junction box The camera comes with a junction box for storing tail cable
    Network
    Protocols IGMP,IPv6,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTSP,DNS,DDNS,NTP,UPnP,HTTP,HTTPS,802.1x,SNMP,QoS,SSL/TLS,SSH,IPv4
    Compatible Integration ONVIF (Profile S, Profile G, Profile T),SDK,
    API
    Interface
    Network interface 1×10M/100M RJ45
    Serial port 2 × RS485
    Boolean output 2 relay outputs, withstand voltage: AC 125V/0.3A, DC 30V/1A
    Boolean input 2 x input, supports level (up to DC 5V) and switch signal
    Audio interface 1 × audio input, 1 × audio output
    Storage interface 1 × Micro SD card slot
    Reset button Support
    Hardware Specification
    Wiegand Interface Supports Wiegand output
    General
    Weight 1.91kg
    Ingress protection IP67, IK10
    Power supply DC12V + 25% – 25%
    Max. power consumption: 20W
    Supports PoE (802.3at, class 4)
    Dimensions (L×W×H) 406mm x 126mm x 130mm
    Operating environment -40℃ to 60℃, ≤90% RH
    Heater N/A
    Compliance
    NDAA Compliant Support
    Certification
    EMC CE-EMC (EN 55032:2015+A11:2020+A1:2020,EN 61000-3-3:2013+A1:2019+A2:2021,EN IEC 61000-3-2:2019+A1:2021, EN 50130-4:2011+A1:2014)
    FCC(FCC CFR 47 part15 B,ANSI C63.4 2014)
    Safety EN IEC 62368-1:2020+A11:2020
    UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
    Environment CE-RoHS (2011/65/EU;(EU)2015/863);WEEE (2012/19/EU)
    Protection IP67(IEC60529:1989+AMD1:1999+AMD2:2013)
    IK10(IEC 62262:2002+AMD1:2021)
