VOICE SPEAKER AV-100E

Name: VOICE SPEAKER AV-100E
SKU: VOICE SPEAKER AV-100E

SKU: VOICE SPEAKER AV-100E

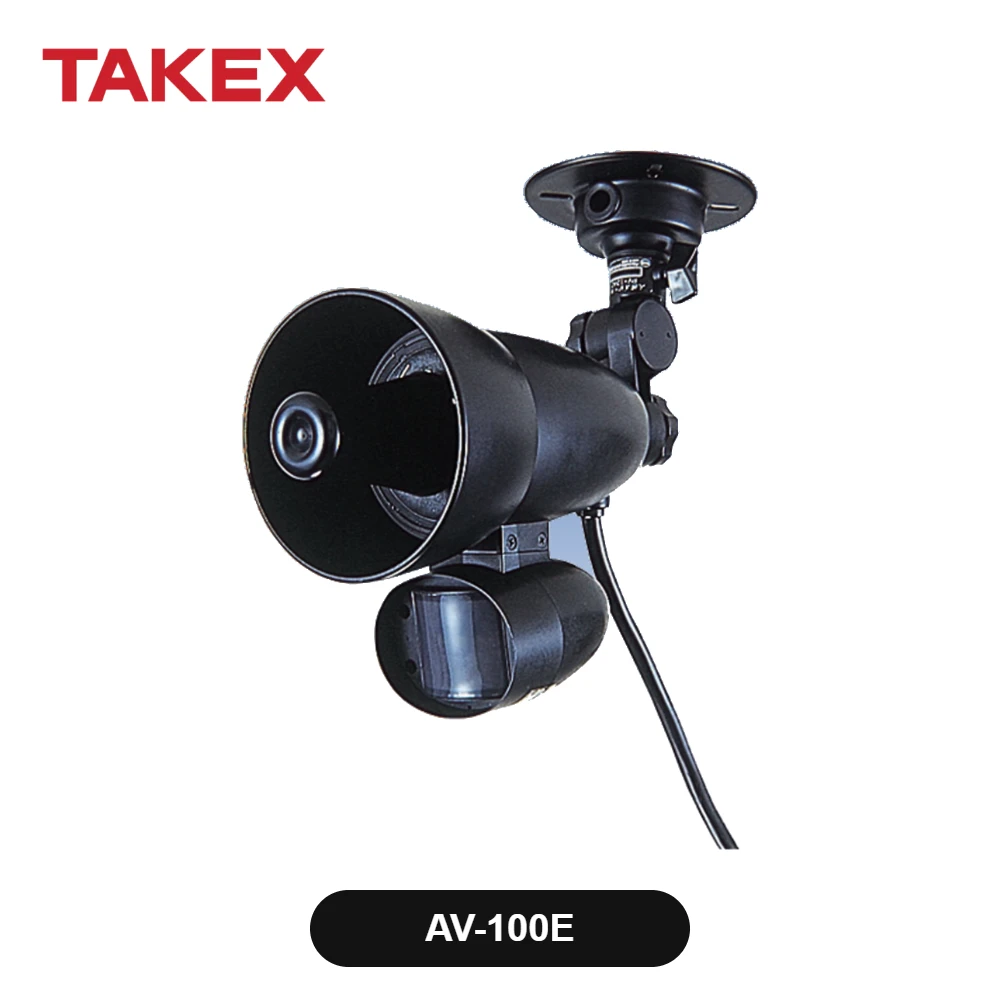

The AV-100E is a horn-type speaker with built-in microphone. A N/O input is required to trigger the playback of your recorded message.

Use to provide welcome messages, protect emergency doors, deter intruders, or to trigger warning messages.

MODEL	TYPE	SUPPLY VOLTAGE	CURRENT CONSUMPTION

AV-100E

Voice Speaker

10 – 14V DC

500mA

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Login to see prices

Compare

Add to wishlist

12 People watching this product now!

Pick up from the Woodmart Store

To pick up today

Free

Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

Delivery - Same day dispatch on orders placed before 12 Noon.

Backed by us - Up to 3 years warranty, 3 years advance replacement.

Free Returns - 30 days money back guarantee given to our customers.

Payment Methods:

Description

VOICE SPEAKER AV-100E Manual

VOICE SPEAKER AV-100EDatasheet

FEATURES

Requires N/O input to trigger

Record a message (up to 12 secs.) using built-in microphone

Omni-directional bracket

Memory back-up for 20 days without power

Horn speaker type 100dB/1m (max)

Specification

Overview

AV-100E

AV-100E SPECIFICATIONS Type Voice Speaker Supply voltage 10 to 14VDC (non-polarity) Current consumption 20mA or less (Stand by) 500mA or less (Max.) Alarm input Dry contact relay: N.O. (contact capacity: 10mA) Sound synthesis method PCM method Record method Built-in condenser microphone Record / Playback time Max 12 secs. Sound output Operation: One-shot playback (12 sec.) by alarm input signal (No retrigger during playback) Sound volume: Max.100dB/2W(1m ahead) at right recording level Adjustable from 0 to Max by volume switch LED indicator (During recording) Recording level is indicated: good: flashing, too low: Lights on, too loud: off (During playback) Light on during playback time (12 sec.) Sound volume control Variable from zero to max. Mounting position Indoor / outdoor (rainproof) Weight Approx. 1000g Appearance Resin (Black)
