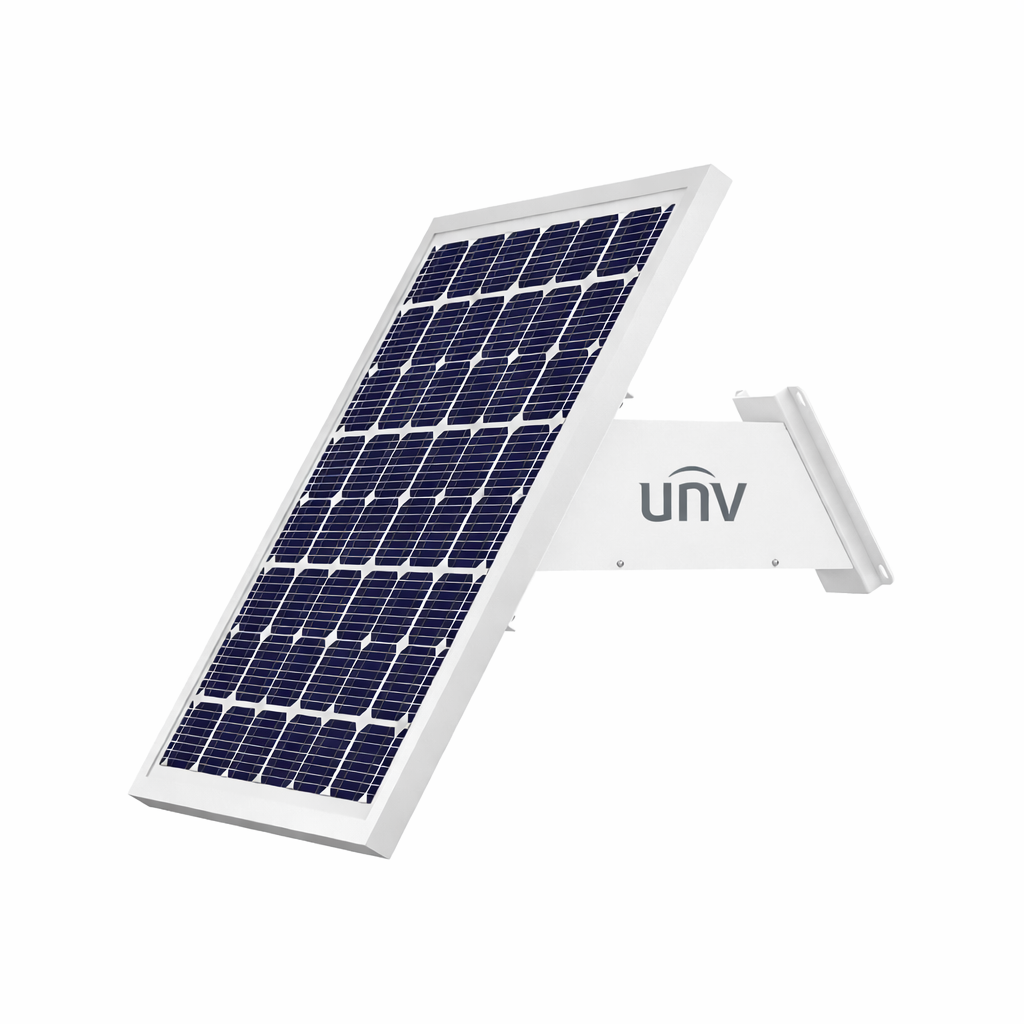

Uniview Solar Panel System (320Wh/60W) SLR-B320P60

SKU: SLR-B320P60

The Uniview SLR-B320P60 is a robust and efficient 320Wh/60W solar power system designed to provide reliable off-grid energy solutions for various outdoor applications. Its modular design facilitates easy battery assembly and solar panel installation, making it ideal for remote surveillance setups, environmental monitoring stations, and other off-grid scenarios.

– Modular Design: Simplifies battery assembly and solar panel installation, enhancing flexibility and scalability.
– High-Safety Lithium Battery: Incorporates a high-reliability, long-life lithium battery cell suitable for diverse application scenarios.
– Efficient Solar Controller: Features a self-developed high-efficiency solar controller that enables faster charging.
– Comprehensive Protection Functions: Includes protections against high and low battery temperatures, overcharge, and undervoltage, ensuring system safety.
– Durable Metal Casing: Windproof and rainproof metal casing capable of withstanding harsh outdoor environments.
– Built-in Heating Module: Activates in low-temperature environments to protect battery life and ensure safe charging.

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

18 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Delivery - Same day dispatch on orders placed before 12 Noon.
  • Backed by us - Up to 3 years warranty, 3 years advance replacement.
  • Free Returns - 30 days money back guarantee given to our customers.

Payment Methods:

Description

Specifications
Solar Panel
Peak power 60W
Operating voltage 4.5V
Operating current 13.33A
Open circuit voltage 5.4V
Short circuit voltage 14.66V
Cell conversion efficiency ≥ 22%
Output interface type 4-pin quick connector (for battery switch)
Dimensions 765mm x 395mm x 25mm
Lithium Battery
Battery capacity 100Ah
Rated energy 320Wh
Limited charge voltage 7V
Output voltage 9V to 12.6V
Maximum output current 2A
Input interface type 4-pin quick connector (for battery switch)
Output interface type DC 12V circular connector
RS-485 Support
Protection High/low temperature protection
Overcharge protection
Undervoltage protection
Dimensions 419.2mm x 118mm x 336.5mm
Maintenance Module
Open circuit voltage 12V
Typical power consumption 0.84W
Maximum power consumption 2W
Input interface type DC 12V circular connector
RS-485 Support
Reset button Support
Indicator Flashing green: Normal
Solid red: Network error
Ingress protection IPx5
Accessory One to two cable
Dimensions 90mm x 90mm x 38.3mm
General
Suitable pole diameter 67mm to 110mm
Operating temperature -20°C to +45°C (charge)
-20°C to +55°C (discharge)
Weight Battery: 4.61kg
Solar Panel: 4.42kg
Module: 0.15kg
