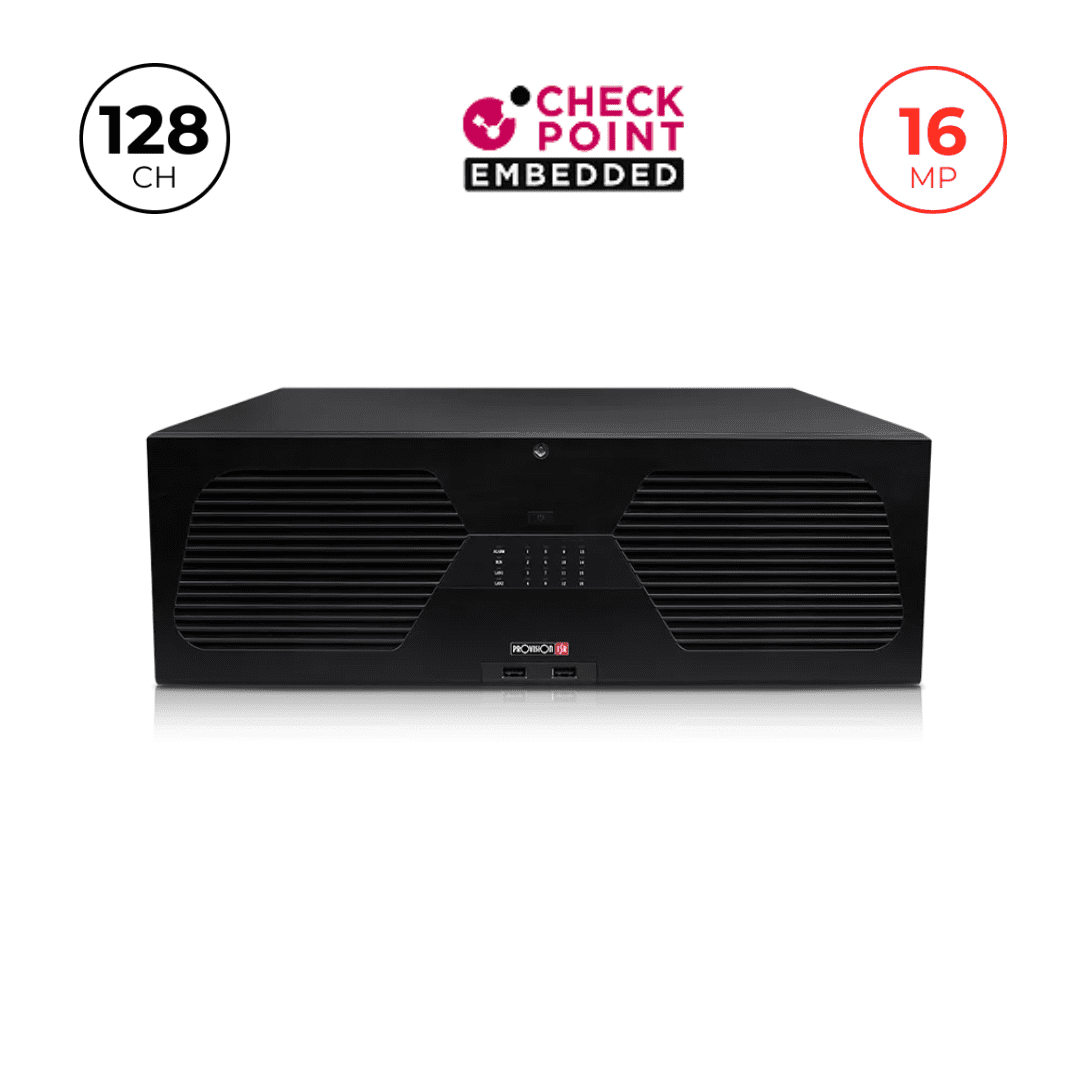

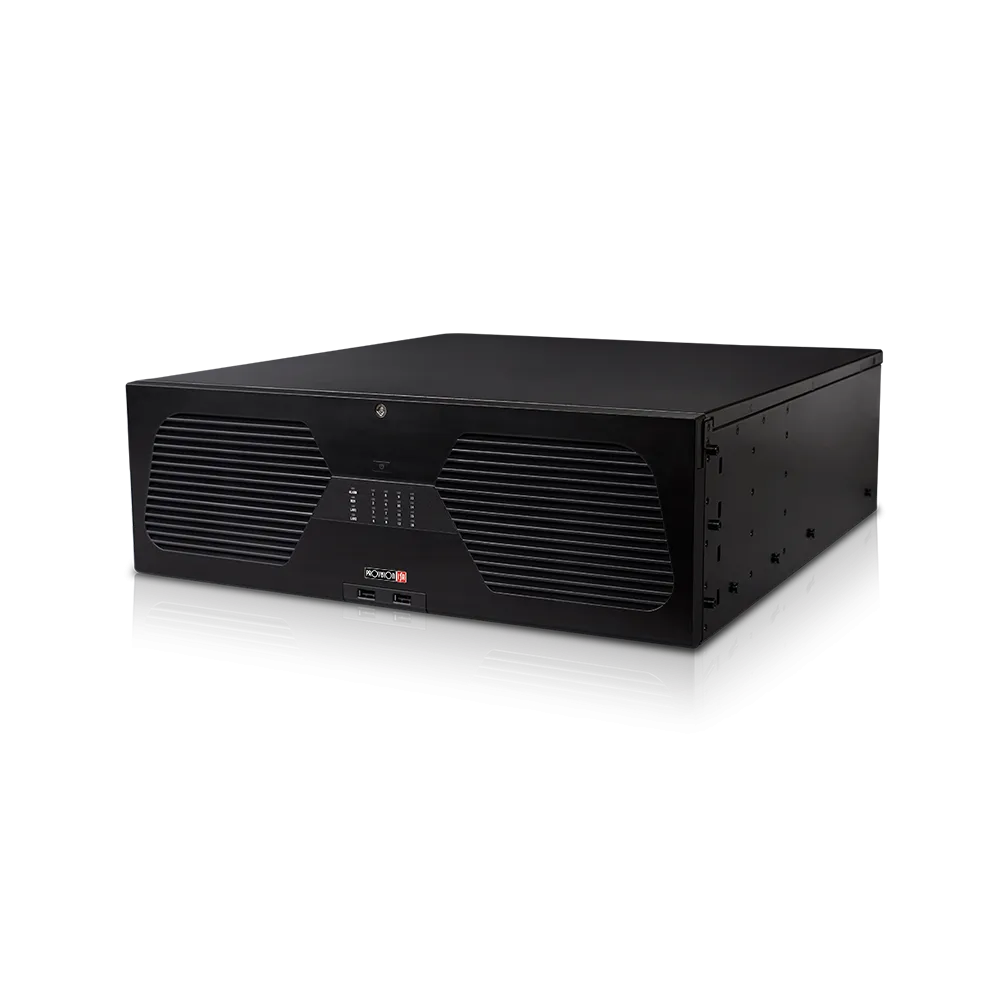

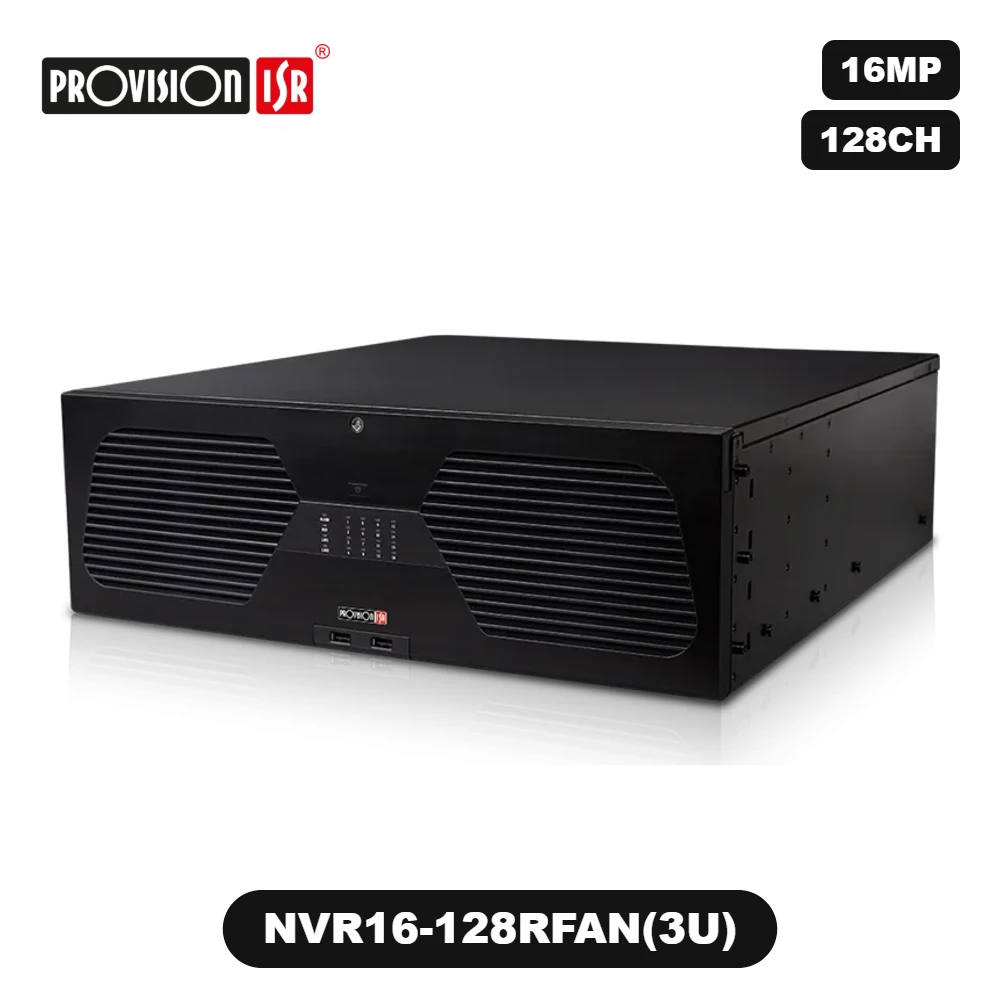

128CH 16MP Face Recognition NVR16-128RFAN(3U)

Download Specs

Download Manual

Video:

• Input: 128 Channel Support
• 128 Channel Standard Connection (Via RJ-45 Network Port)
• Output: HDMI1 (8K 30/60Hz, 4K, 1080P, 1280×1024) (When the resolution of HDMI1 output is 8K, HDMI2 is unavailable) HDMI2: 4K, 1080P, 1280×1024, 1024×768 HDMI3: 4K, 1080P, 1280×1024, 1024×768 HDMI4: 1080P, 1280×1024, 1024×768 VGA: 1080P 1280×1024, 1024×768 (VGA and HDMI1 output the same video source)

Bandwidth:

• Incoming: 768Mbps
• Outgoing: 768Mbps

Decoding Support:

• H.265S/H.265+/H.265/H264

Analytics:

• Camera Tampering, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Object Counting (DDA), Crowd Gathering, People Intrusion, Smart Search, Face Recognition (Up to 16 CH), LPR, Thermal.
• Advanced Face Recognition Mode: Supports 4 Non-AI IPCs and performs face detection and recognition.

Recording:

• 128CH 16MP Real-Time
• FPS: 3200 (PAL) / 3840 (NTSC)

Playback:

• Local: 16Ch Simultaneously
• Remote: 16Ch Simultaneously

Audio:

• Input: 1CH + IPC Inputs
• Output: 1CH + IPC Output
• 2 Way Audio

Alarm:

• Input: 24+IPC
• Output: 4+IPC

Storage:

• 16 x SATA (Up to 10TB each)
• 2 x E-SATA (Up to 10TB each)
• RAID: (0/1/5/6/10) Support

USB Port:

• 2 USB 2.0 Port + 1 USB 3.0 Port

Network:

• 2 x RJ-45: 10/100/1000Mbps Each

Remarks:

• The following features are based on firmware 1.4.12_78966_RD250520 and are subject to firmware version changes.
