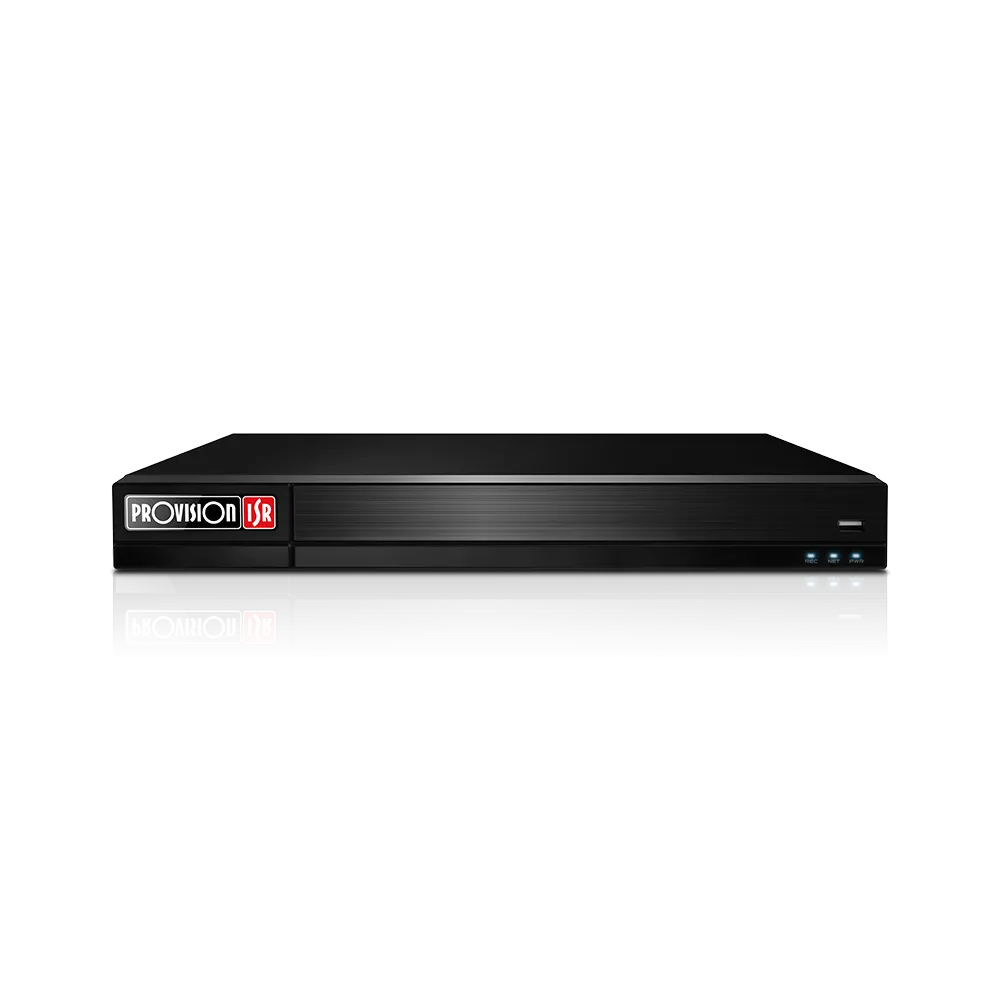

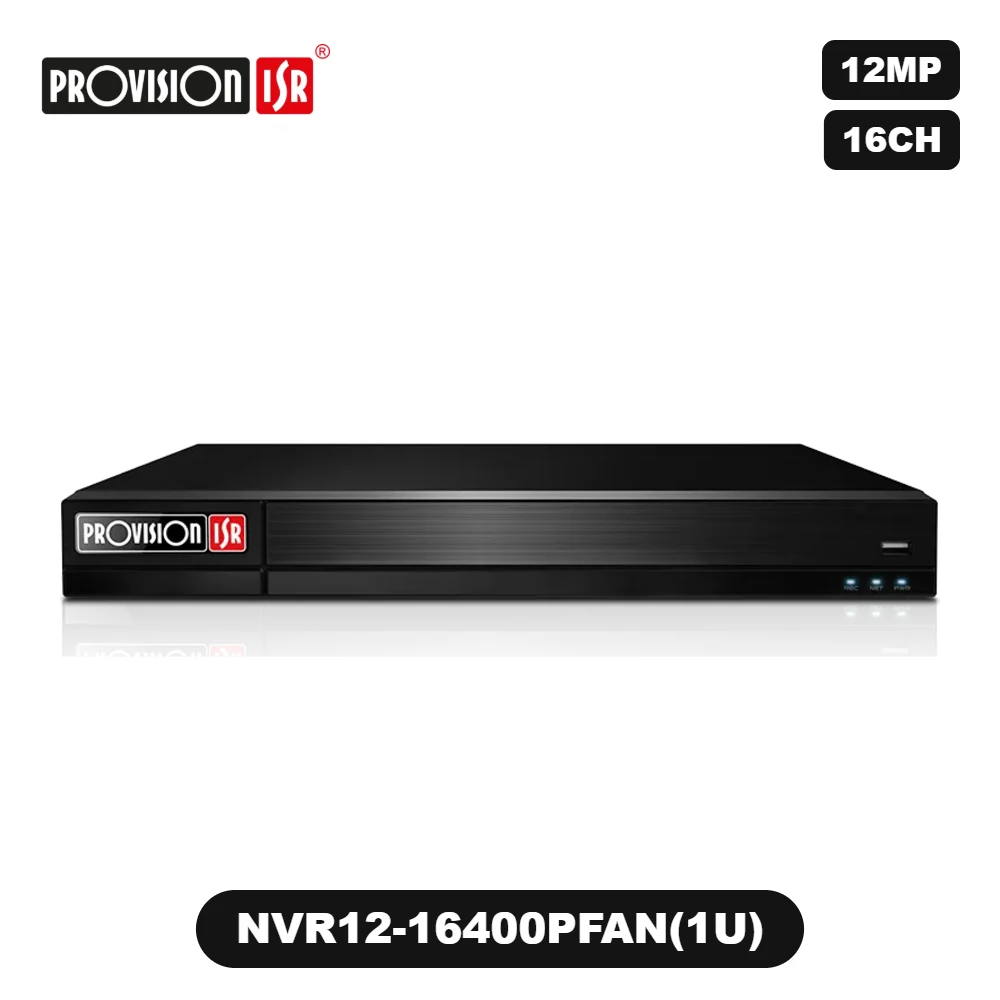

16CH 12MP Face Recognition PoE NVR NVR12-16400PFAN(1U)

Download Specs

Download Manual:

• Input: 16 Channel Support
• 16 Channel PoE / Standard Network Connection (Via 16 x RJ-45 / Network)
• Output: HDMI (4K@60Hz, 4K@30Hz, 1080P), VGA (1080P, 1280×1024, 1024×768)

Bandwidth:

• Incoming: 160Mbps
• Outgoing: 160Mbps

Decoding Support:

• H.265S/H.265+/H.265/H264

Analytics:

• Camera Tampering, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Loitering Detection, Illegal Parking, Audio Exception, Heat Map, Object Counting (Line),Object Counting (Area), Smart Search, Face Recognition, LPR, Thermal, Crowd Gathering, People Intrusion
• Advanced Face Recognition Mode: Supports 2 Non-AI IPCs and performs face detection and recognition.

Recording:

• 16CH 12MP Real-Time
• FPS: 400 (PAL) / 480 (NTSC)

Playback:

• Local: 16Ch Simultaneously
• Remote: 16Ch Simultaneously

Audio:

• Input: 1CH + IPC Inputs
• Output: 1CH + IPC Output
• 2 Way Audio

Alarm:

• Input: 8+IPC
• Output: 4+IPC

Storage:

• 2 x SATA (Up to 10TB each)

USB Port:

• 2 USB 2.0 Port + 1 USB 3.0 Port

Network:

• 1 x RJ-45: 10/100/1000Mbps Each

Remarks:

• The following features are based on firmware v1.4.12_79765_RD250627 and are subject to firmware version changes.
